Tips & Tricks in Configuration Console

Introduction

Infor’s Configuration Console is a tool that can be used to configure Landmark applications.  It can be used to create new user interface components, or customize existing user interface components.  It is a very useful tool for customizing and enhancing the user experience in Landmark applications.  The tool uses a proprietary language called “Landmark Pattern Language” (LPL).

To get to the Configuration Console in Rich Client, go to Start > Configure > Application.  Or, you can ctrl+shift+click on a Landmark form and click the “Configure” link.





The “empty sheet” button is used throughout Landmark applications to create a new item.  Configuration Console is no exception.  Press this button to create a new configuration.  The save and delete buttons are also intuitive.  When you click the delete button, remember you are deleting the configuration only, not the Infor-delivered component!

In most cases, the “pencil” button indicates editing the configuration LPL directly, and the “Configure” button is for editing the component using a graphical interface.

Menus

Configuring menus is pretty straightforward.  Menu items can be deleted, and menus can be hidden from user view.  Note that if a menu is hidden in Configuration Console, this setting takes precedence.  So, if the menu is available via security, it still can’t be viewed.

Pages

There are a few options available in configuring pages.  Mostly you can add different fields, including computed fields.  This is one example where the pencil button does not indicate LPL configuration.  On the main configuration screen for a page, the pencil button takes you into the page editor.  At the bottom of that screen, you will have to option to edit the LPL code.

Web Applications

Web Applications have a few options for configuration.  One thing that can be customized is the home landing page for the web application.  Just make sure the page exists in the correct location on your server!

User Fields

User Fields are probably one of the most widely-used configurations available.  The value in a User Field will be saved in the database, so that it can be accessed later in Landmark queries or Spreadsheet Designer.  There are several types of fields available to allow you much flexibility in form customization.

A snapshot is sort of what it sounds like.  It is a copy or a “snapshot” of another field from a related business class.

A condition field is a way to test a condition without having to rewrite code over & over.  A condition field should always return true or false.

A compute fields allows you to do mathematical and date computations on one or more fields in the business class.

Derived fields are the most flexible option, and can be used in place of all of the above field types.  They can be used to convert data types, take substrings, or write more complex bits of code to return the desired information.

Forms

Forms are another highly configurable component.  User Fields can be added to forms.  Fields can be hidden, actions can be disabled, and basic checks can be done to customize the flow of a form.  Here are some examples for setting default values on a Form.

Relations

Relations are another very useful tool in the Configuration Console arsenal.  They can really open up your forms and other components to allow you to get data from other areas in the application that isn’t readily available.  Relations are a way of relating two business classes on key fields.  A one-to-one relationship requires all of the key fields to be populated.  A one-to-many relationship does not, but be aware that this could return a list of values instead of one value!

These are examples of relating the Candidate business class to the Employee an WorkAssignment business classes.

Actions

Actions can be configured with Entrance Rules (things that happen when the action loads), Exit Rules (things that happen when the action is released), and User Parameters.  The User Parameters would follow the action into the next step, such as an IPA approval flow.  Some of the fields on an action can be configured to be required, or not required.

History

All configuration changes are version and stored each time the configuration is saved.  This means that you can compare current state to any of the previous states to the beginning of the configuration, as well as the base LPL.  This is highly useful, and a great feature!  To get to the history, on the main page of any component, select “Vew History”.  On the left side is the historical configuration.  On the right side is present-day.  You can click the dropdown to select the configuration you want to compare.  If you are ready to go back to that configuration, click the “revert” button.  If you are satisfied, don’t forget to save your changes!

Helpful Links

Infor’s documentation site is a great jumping-off point for learning about Configuration Console and LPL.



Also, check out the webinar that our very own Sr Technical Consultant Desi hosted on this topic!



Tips & Tricks in Configuration Console

Learn how to customize the user experience in all your Landmark applications with the Configuration Console.  We’ll show you how to create user fields, how to bring data from a related business class into a form, and more!







Tips & Tricks in Configuration Console (April 28th, 9 AM PST)

Learn how to customize the user experience in all your Landmark applications with the Configuration Console.  We’ll show you how to create user fields, how to bring data from a related business class into a form, and more!

When: Thursday April 28, 2022

9:00 AM to 10:00 AM PST

This webinar is free to attend. Register Here

Landmark Application Configuration Overview

The Landmark Configuration Console allows you to effect system-wide changes with no downtime for your users.  You can personalize your Landmark applications in a multitude of ways:

  • Add custom fields
  • Move fields or remove them from forms
  • Set fields to required
  • Modify list columns (add/remove/rearrange)
  • Create new
    • User interfaces (pages, lists, etc)
    • Business classes (data, objects, etc)
  • Security
    • Use the Security Configuration tool to modify security classes, rules, and roles
  • Web Services
    • External systems communication with Landmark business classes using SOAP, HTTP, WSDL, or REST

The Infor-delivered role what will allow users to access Configuration Console is GlobalUIConfigAccess_ST.  The role that will allow users to access Security Configuration is SecurityConfigAccess_ST.

Adding a custom field to a form using Configuration Console

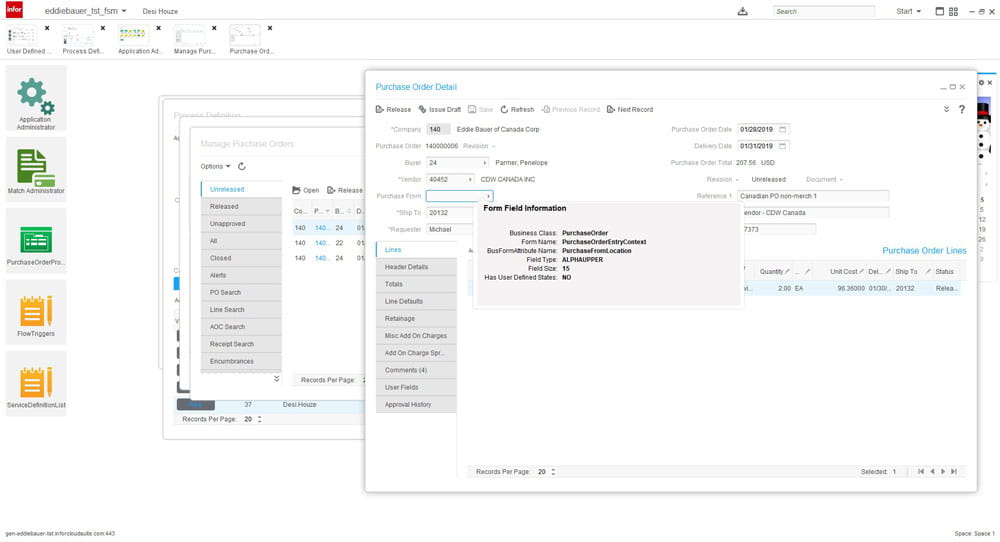

Find the name of the Form and the Business Class that you want to add the field to (Ctrl-Shift-Click on any field on the form)

Log into Rich Client and go to Start > Configure > Application (make sure that you have been granted access to Configuration Console)

Find your Business Class, and click “User Fields” under the class

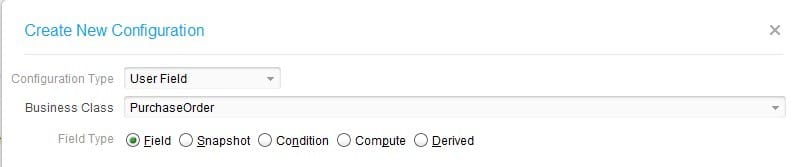

Click the “blank paper” icon to add a new user field

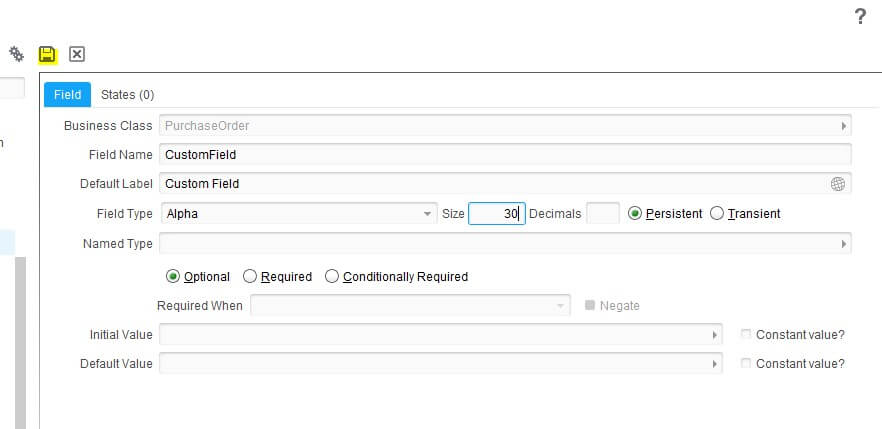

Give your user field a meaningful name (no numbers or special characters allowed, and the field name must begin with an upper-case letter)

Next, go to configured forms and find the form name that you noted earlier

If this form has never been customized, you may need to click the blank paper icon to add it to the Configured Forms list

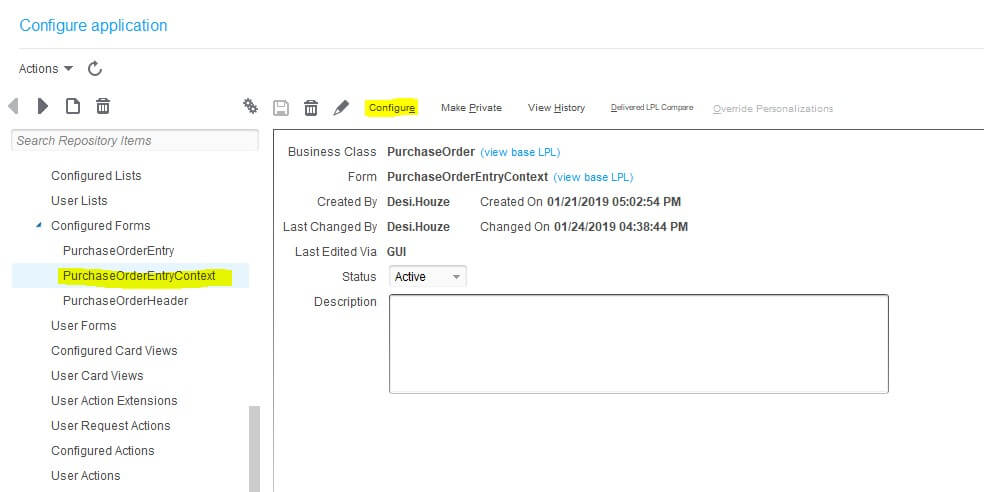

Once the form has been added as a configured form, click on the form name, then click “Configure”

Navigate to the location where you want to add the user field

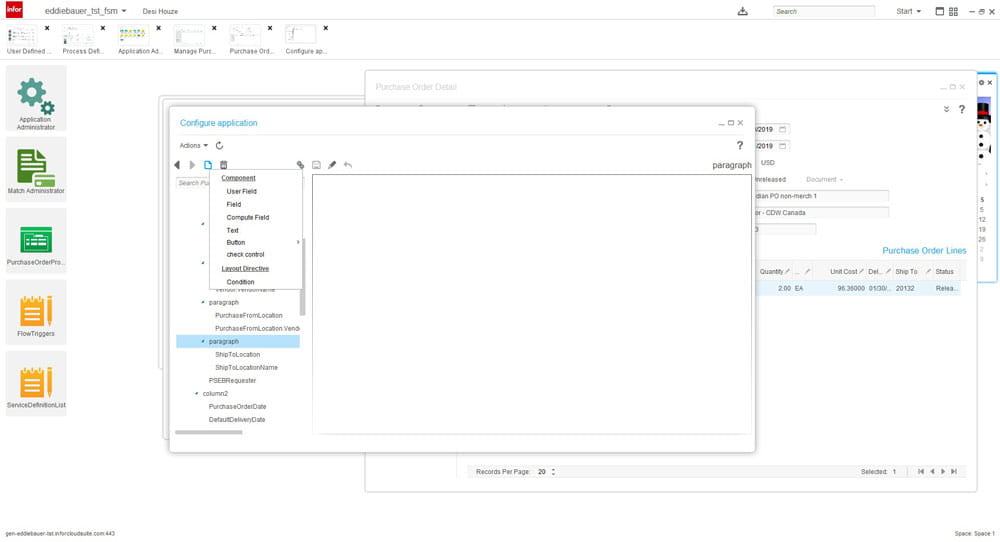

Click the blank paper and select “User Field”

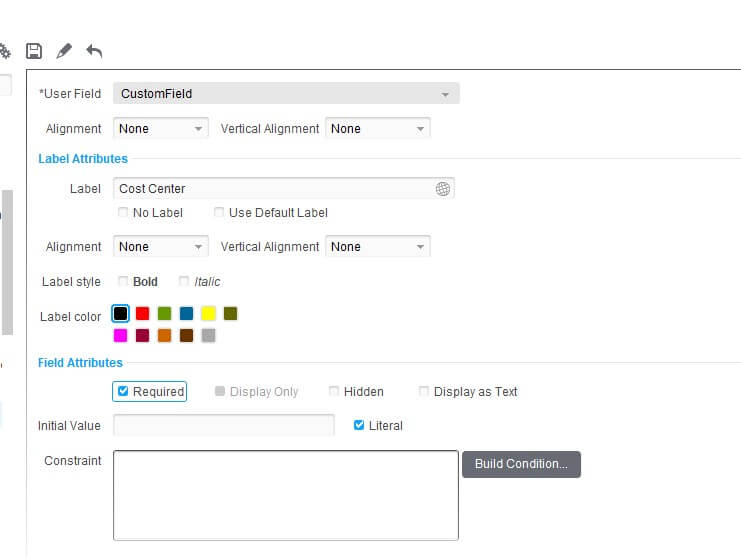

Configure the user field for the form

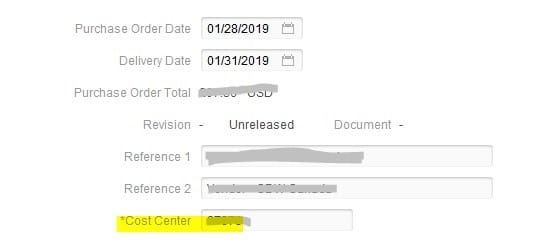

Click “Save” and verify that the user field is now on your screen
